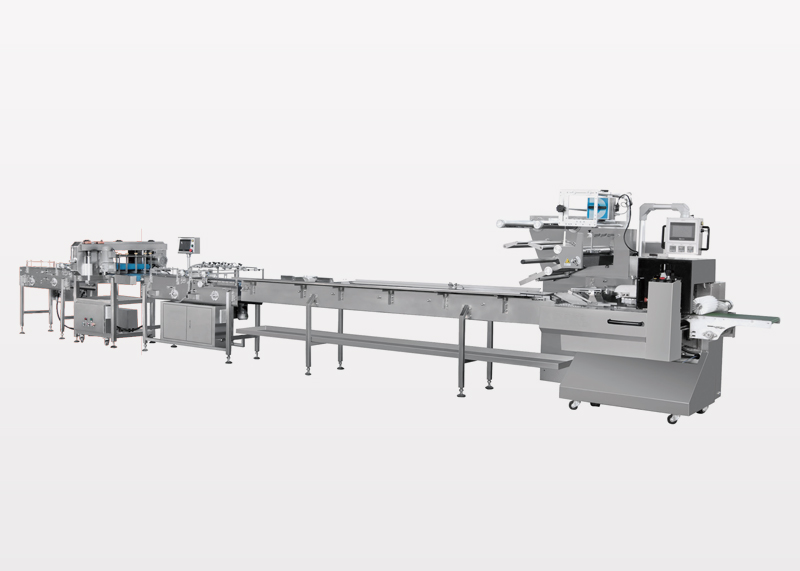

Automatic Horizontal Flow Wrap Machine

We have attained wide reputation in the market by developing best quality Automatic Horizontal Flow Wrap Machine


  • Hamburger packaging: automatic / semi-automatic packaging line. Especially mass production in flow line

Technical Specification:

  • Max film width: 450mm
  • Product: 1 piece / Pack
  • Product size: Diameter: 55mm Height: 8.9mm
  • Max speed: 20 ~ 260 packs/min (According to products' size (length*width *height), feeding speed, packing film material and so on)
  • Hot ink roll date printer: DK-1100
  • Three Panasonic servo motors driven: one controls infeed conveyor ; one controls longitudinal sealing and film running; one controls transversal sealing.
  • Panasonic PLC program.
  • Rotary sealing jaw in transversal sealing.
  • 2 reel holder with auto centering and locking device: save time while changing one used out reel to another reel film.
  • 2 sets of longitudinal sealing wheels: Cold wheel pulling through the packing film, Hot one sealing the packing film.
  • PID Temperature Controller reduce the film burning
  • High sensitive photo cell sensor for eye mark printing.
  • 7' colorful touch screen with 10 kinds of product packing data memories for easy data setting and change over between different products.
  • 360 Cantilevered touch screen.
  • Adjustable forming box facilitate to pack products in different width and height.
  • 3 meters (in length) infeed conveyor with adjustable guides.
  • Top brush belt assist products passing through transversal sealing.
  • All contact surface with product is made of SUS 304.
  • Alarm device for emergency stop.
  • Easy to clean: Tilted plate under main frame facilitates crumbs to fall through of the products. Tilted No: ZL201620122680.9.
  • CE Certificate: Multiple security protective measures ensure safety run while in production.
  • Voltage: 1 Phase 220 V 50 Hz Power: 3.6KW
  • Floor space: (L) 4500mm X (W) 1050mm X (H) 1700mm
  • Weight: 1000kg
  • Wooden case packing
